Conduction System Pacing

4 min read

  • Conduction system pacing (CSP) has emerged as a more physiological alternative to right ventricular pacing and is also being used in selected cases for cardiac resynchronization therapy. 1

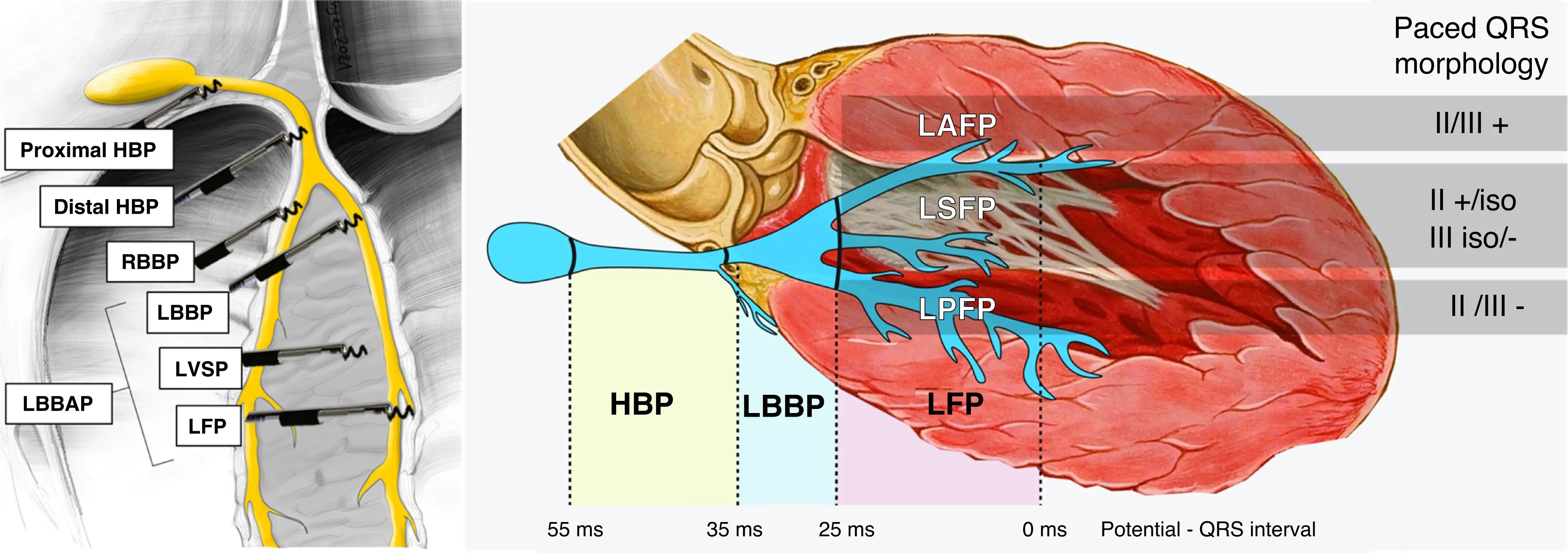

Figure source: 1

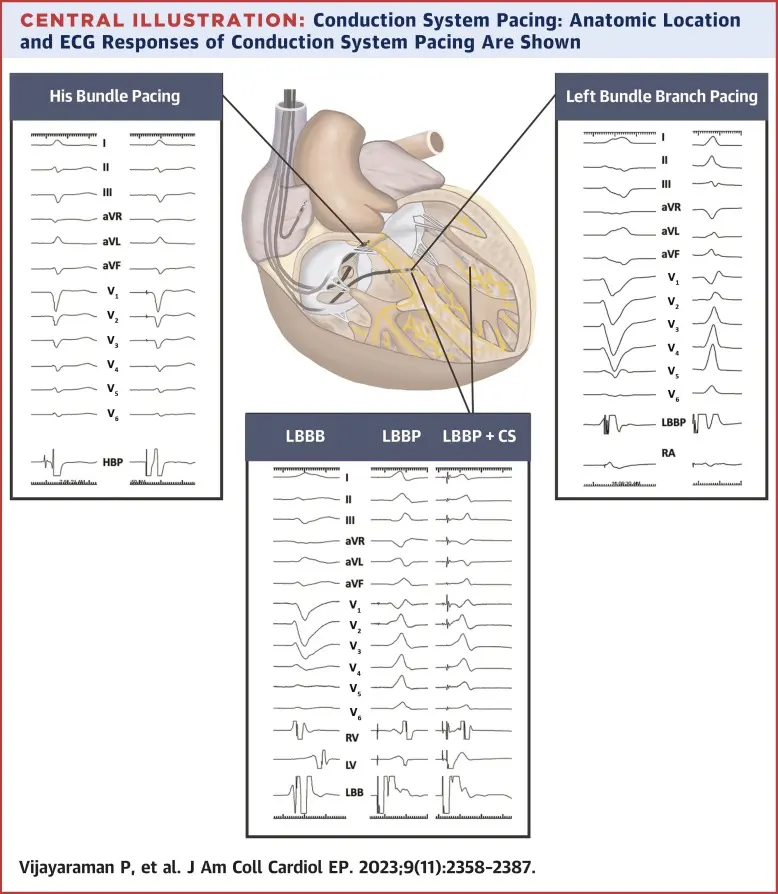

  • Conduction system pacing includes:
    • His Bundle pacing (proximal, distal)
    • LBBP
    • 📝 RBBP is uncommon

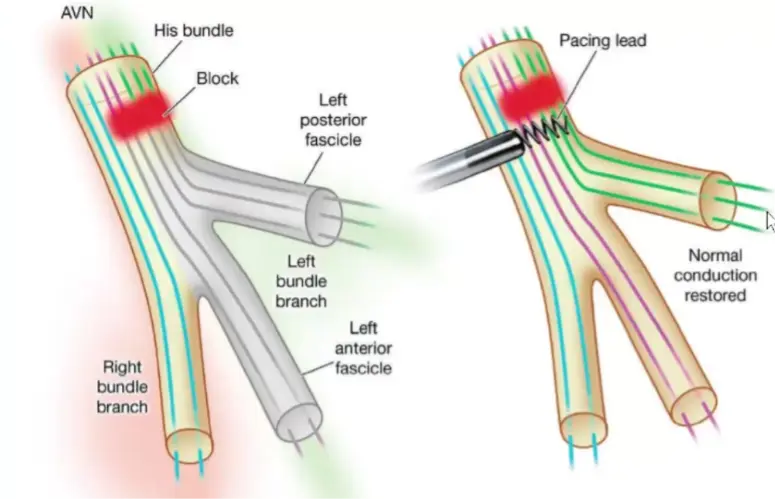

  • “CSP involves recruitment of the intrinsic conduction system by either HBP or LBBAP.”
  • CRT aims to restore or preserve ventricular synchrony using left ventricular (LV) stimulation at appropriately timed right ventricular (RV) sensing or stimulation. CRT most commonly refers to BiV pacing, in which a pacing lead is implanted in the RV and another on the epicardial surface of the LV via an epicardial vein. Alternatively, the LV lead may be implanted endocardially or surgically on the epicardium. LV pacing alone in some situations may also deliver CRT. CSP for patients with dyssynchrony may also be considered a form of CRT, but for the purposes of this guideline, CRT refers to use of BiV or LV pacing. These pacing locations refer to standard anatomy but may differ in certain forms of congenital heart disease.
    • BiV pacing is the most common method used to achieve CRT. It most commonly involves the use of 2 ventricular leads, 1 in the RV (apex or septum) and 1 to pace the LV via the coronary sinus or sometimes via direct placement on the epicardium or endocardium. The LV lead is usually implanted epicardially in the coronary veins, ideally targeting an area of latest activation, which is most often the lateral or posterolateral wall. Alternatively, the LV lead may be implanted endocardially or surgically on the LV epicardium.

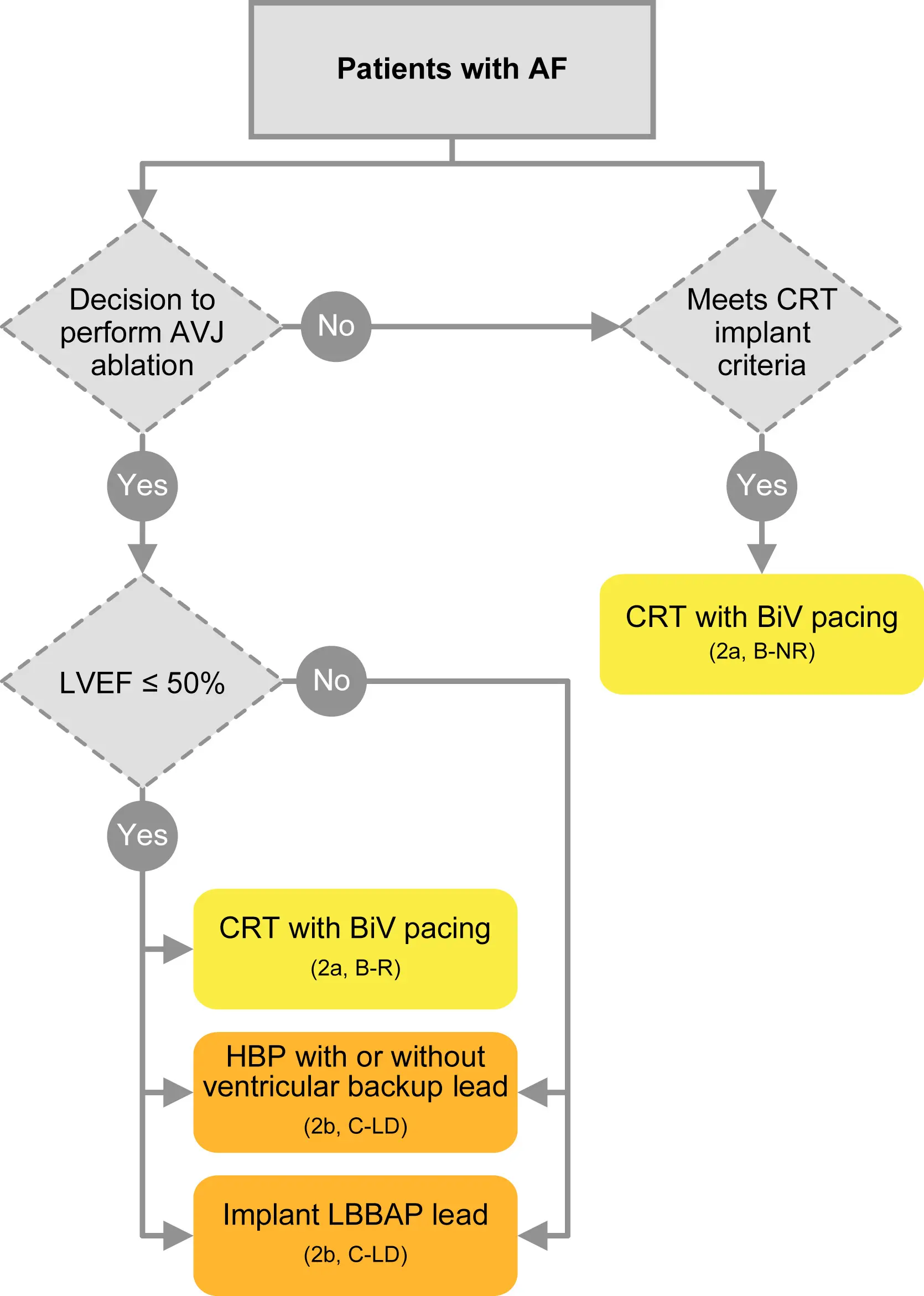

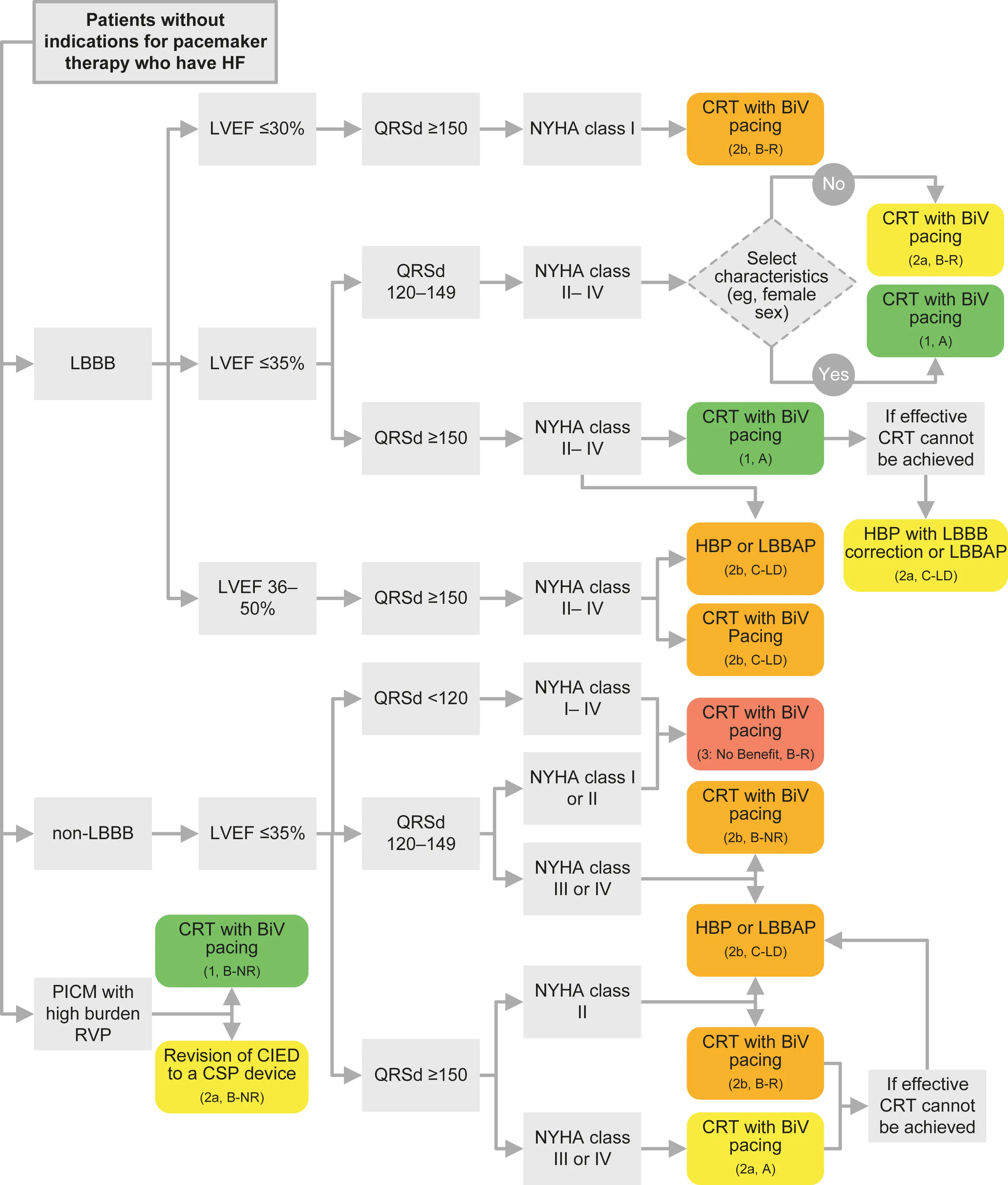

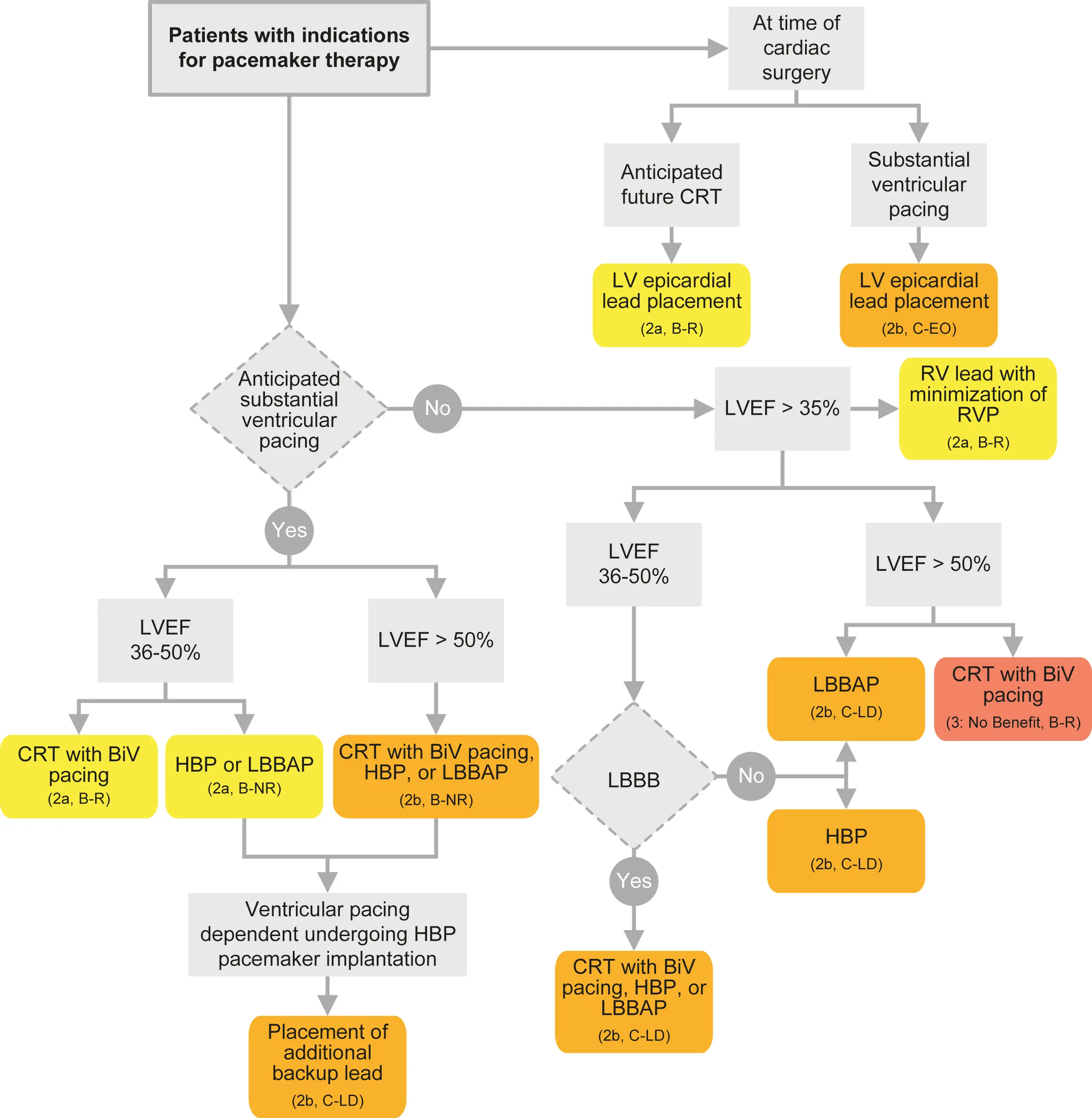

Pacing Selection

Algorithm source: 2

His Bundle Pacing (HBP)

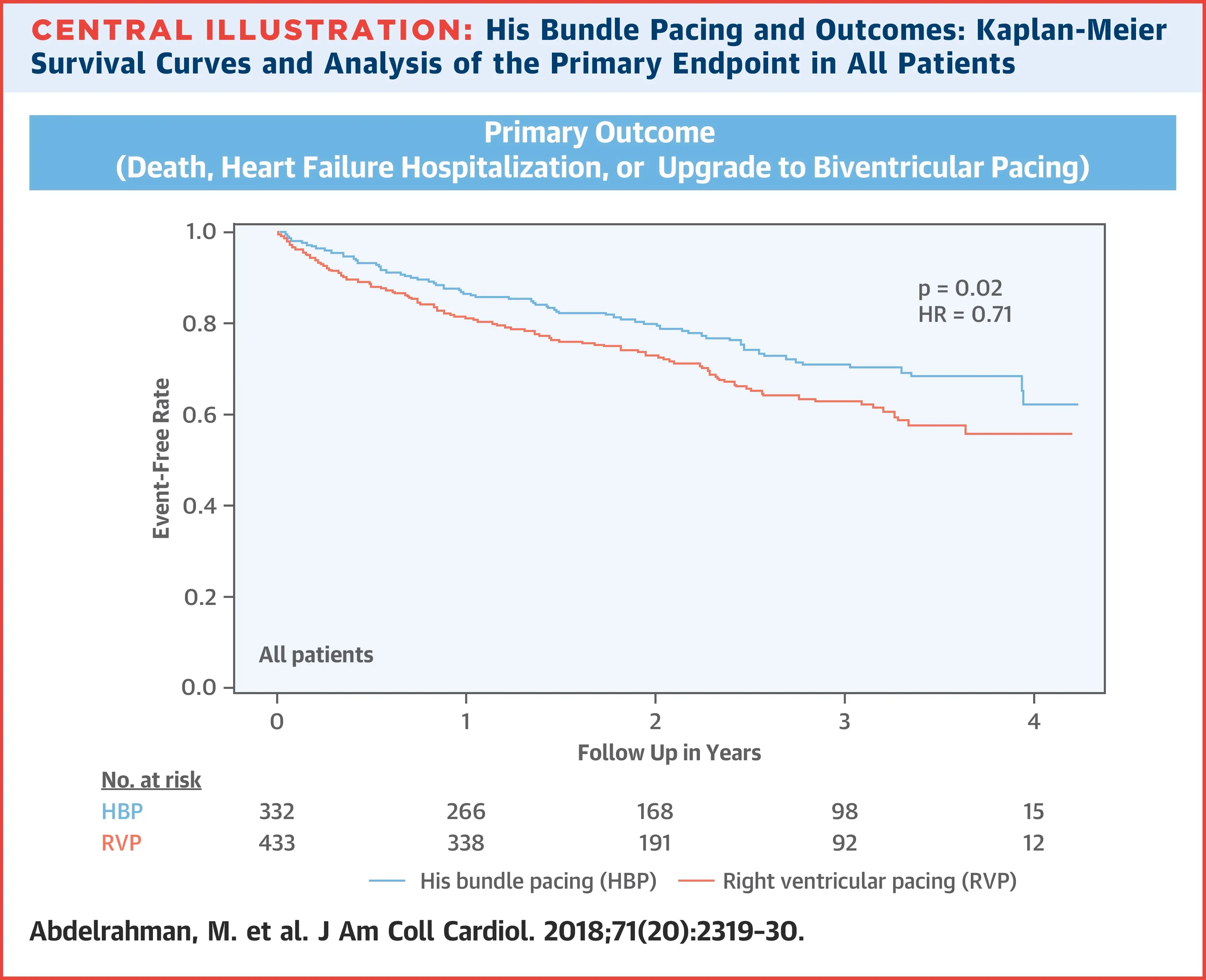

  • Recent evidence appears to support improved outcomes (including mortality) with HBP relative to RVP. 3
  • Challenges include:
    • higher pacing threshold (10-20%) to correct LBBB (drains battery 🪫)
    • ↑ lead revisions
    • premature generator change
    • concerns for long-term lead stability

LBB Area Pacing (LBBAP)

  • Advantages 1
    • wider target area
    • excellent electrical parameters

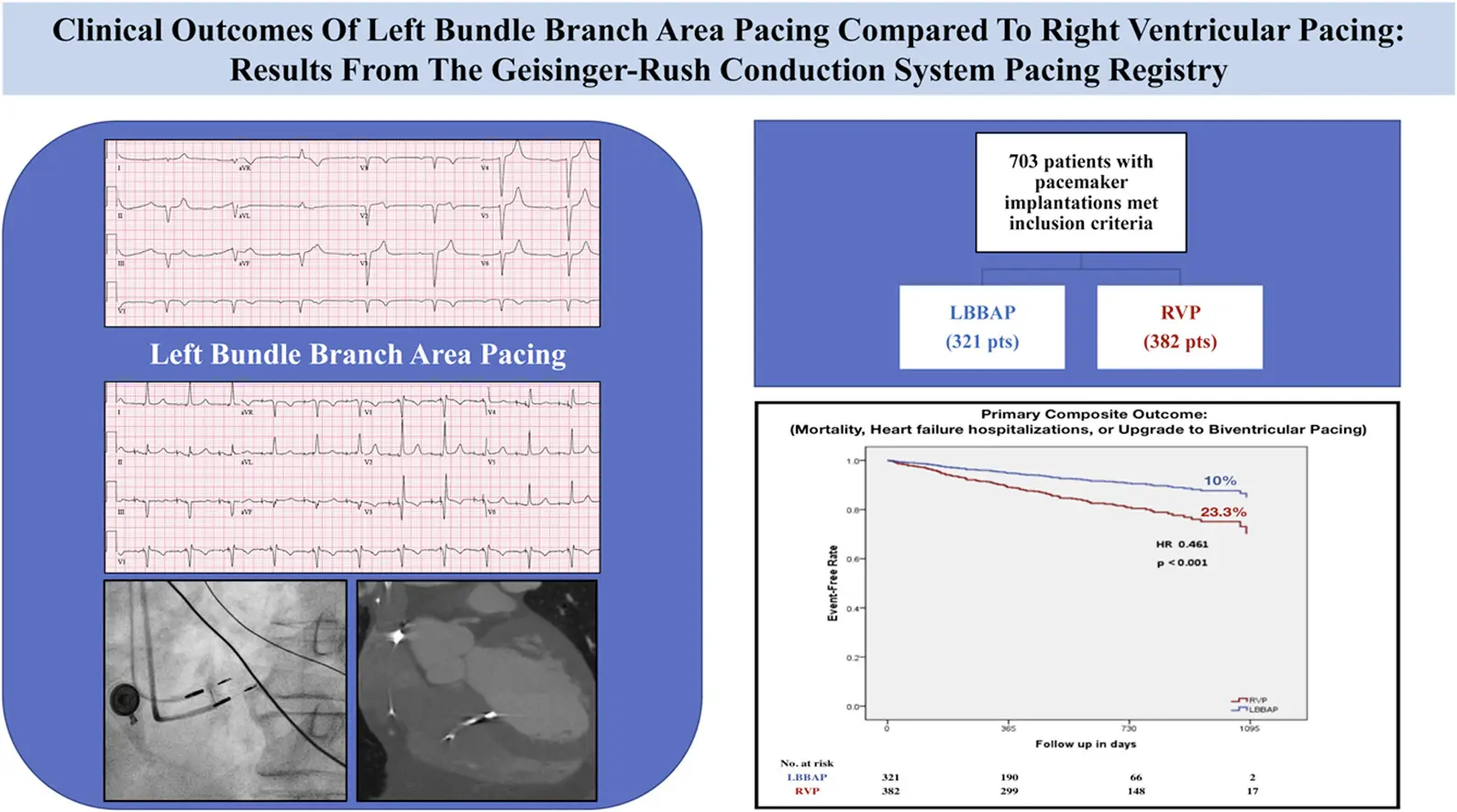

  • Geisinger-Rush registry appears to show improved outcomes with LBBAP relative to RVP 4
