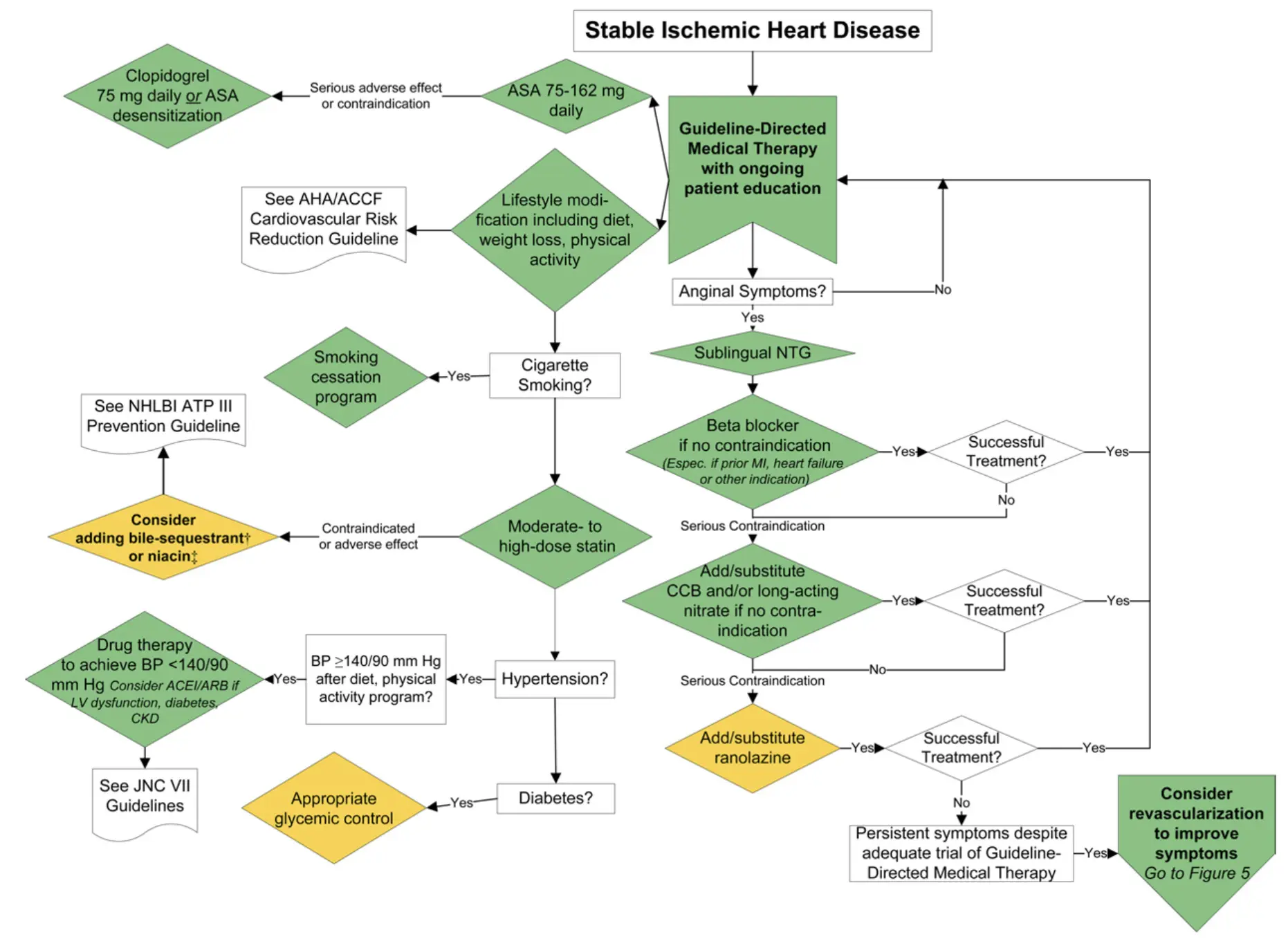

Guideline-directed Medical Therapy

Source: Figure 4 of 1

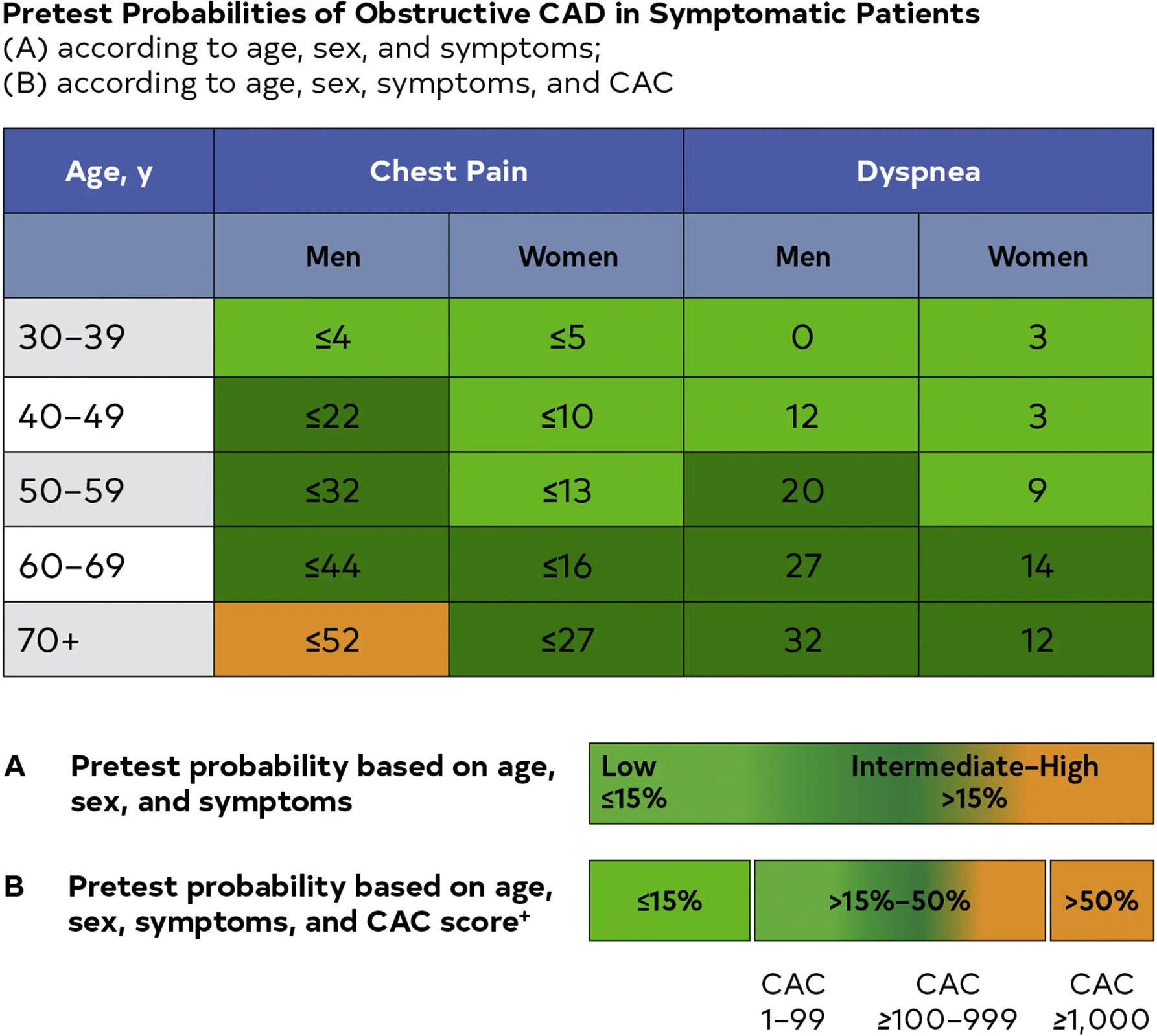

Risk Stratification

Figure source: Figure 11 of 2

Cardiac Testing

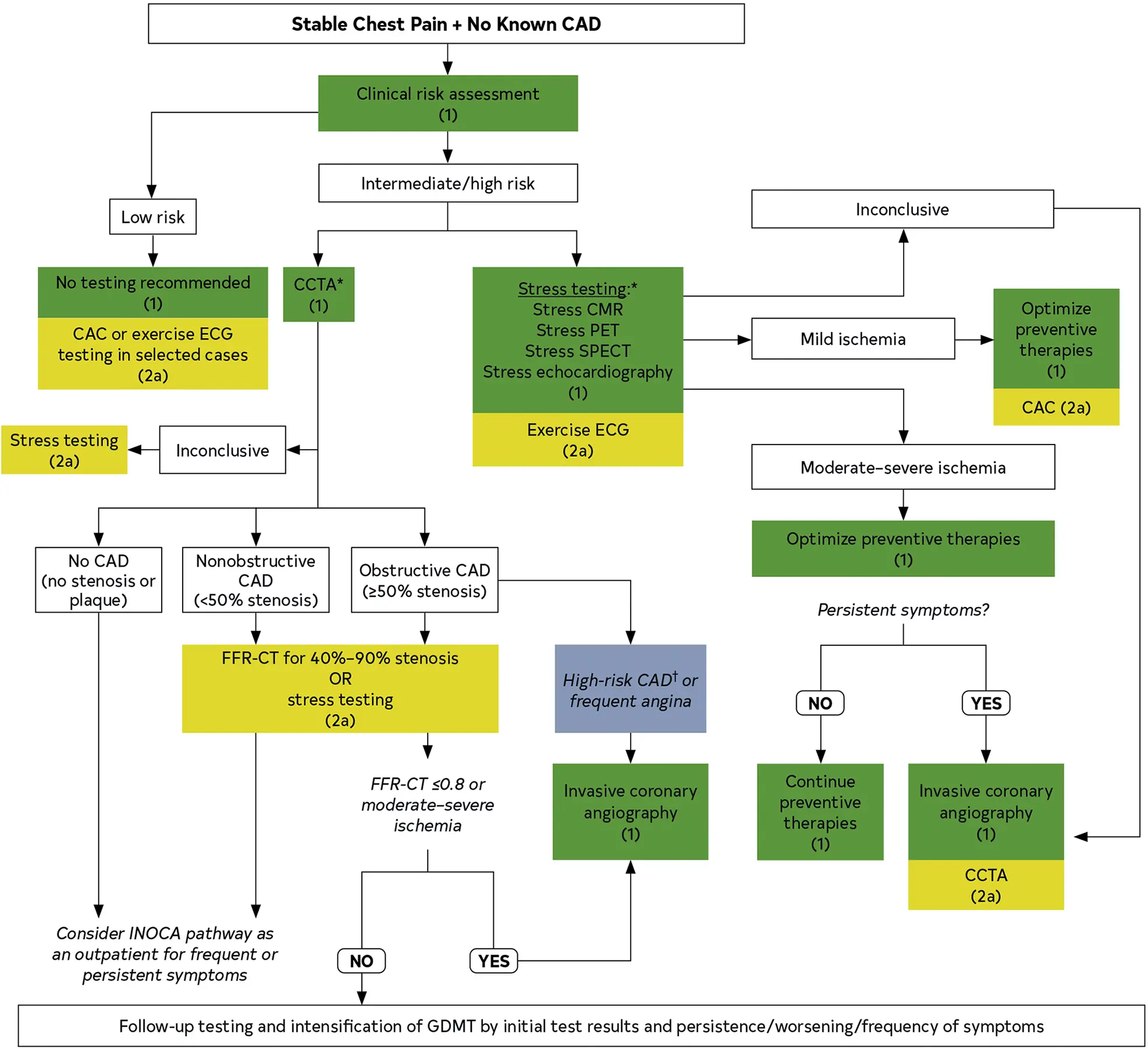

Stable Chest Pain and No Known CAD

  • Anatomic Testing
    • If intermediate-to-high risk, then CCTA is effective for diagnosis of CAD, for risk stratification, and for guiding treatment decisions (Class 1A) 2
  • Stress Testing for intermediate-to-high risk patients
    • Stress imaging with stress echo, PET/SPECT MPI or CMR is effective for diagnosis of myocardial ischemia and for estimating risk of MACE (Class 1B) 2
      • PET is preferred over SPECT (Class 2a) to improve diagnostic accuracy and decrease the rate of nondiagnostic test results 2

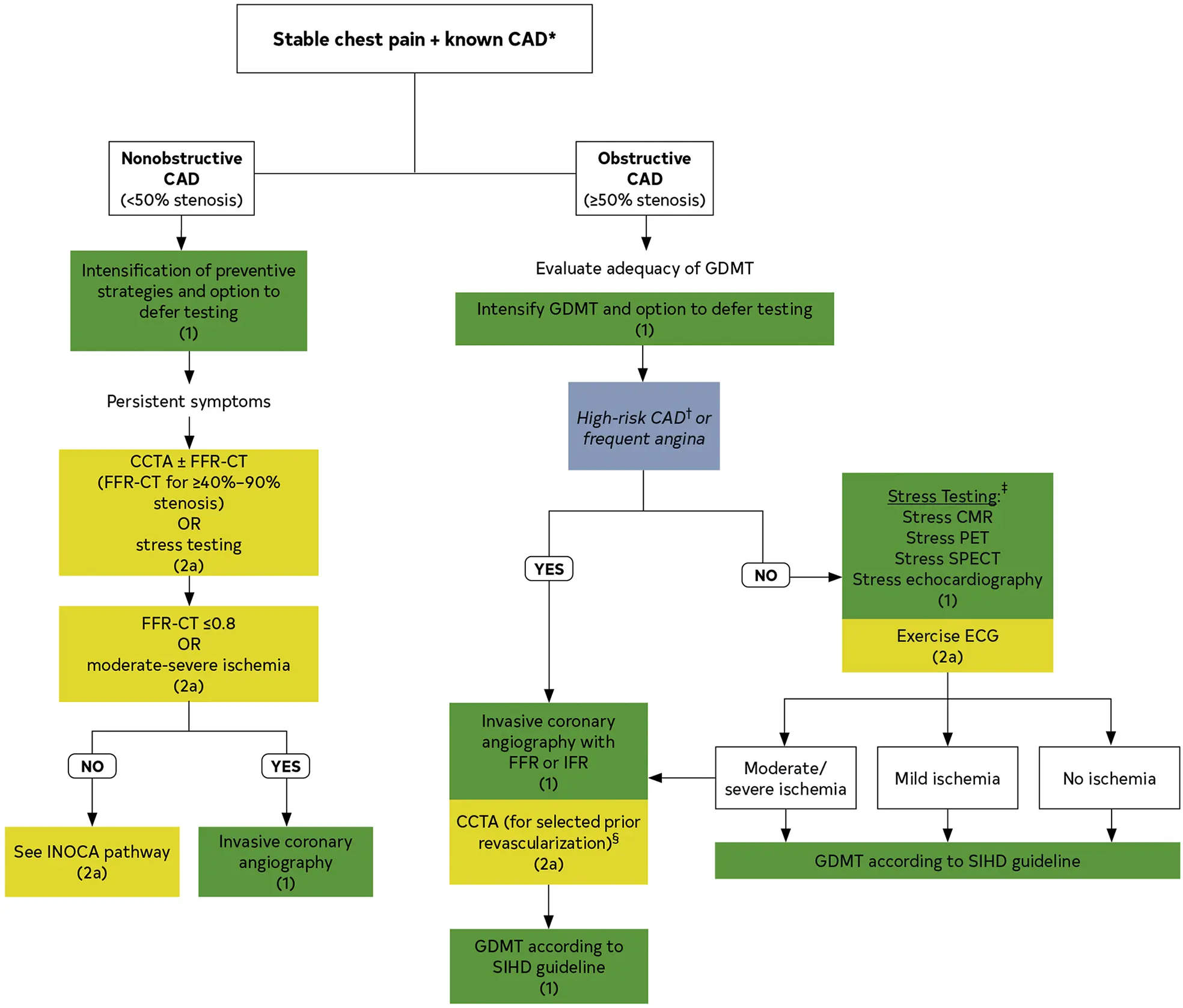

Stable Chest Pain and Known CAD

Footnotes

  1. Fihn SD, Gardin JM, Abrams J, et al. 2012 ACCF/AHA/ACP/AATS/PCNA/SCAI/STS Guideline for the Diagnosis and Management of Patients With Stable Ischemic Heart Disease. Journal of the American College of Cardiology. 2012;60(24):e44-e164. doi:10.1016/j.jacc.2012.07.013 2 3 4 5 6 7

  2. Gulati M, Levy PD, Mukherjee D, et al. 2021 AHA/ACC/ASE/CHEST/SAEM/SCCT/SCMR Guideline for the Evaluation and Diagnosis of Chest Pain. Journal of the American College of Cardiology. 2021;78(22):e187-e285. doi:10.1016/j.jacc.2021.07.053 2 3 4
